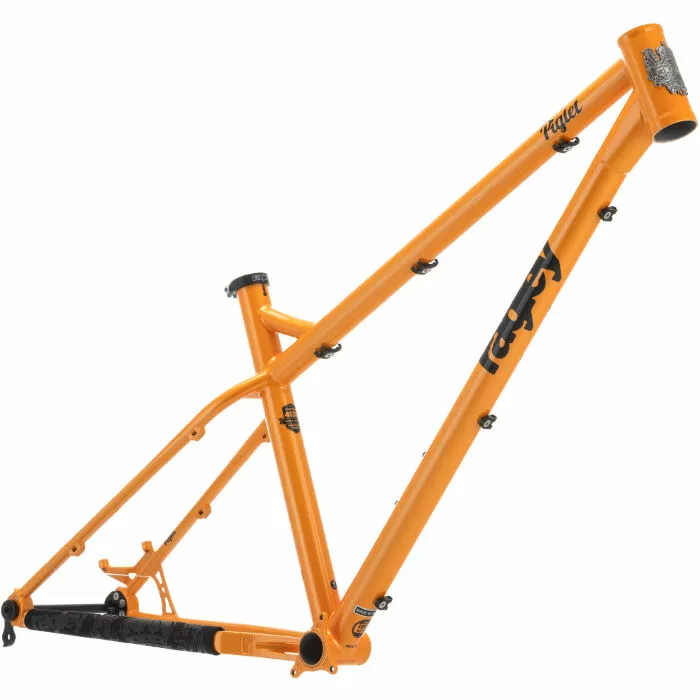

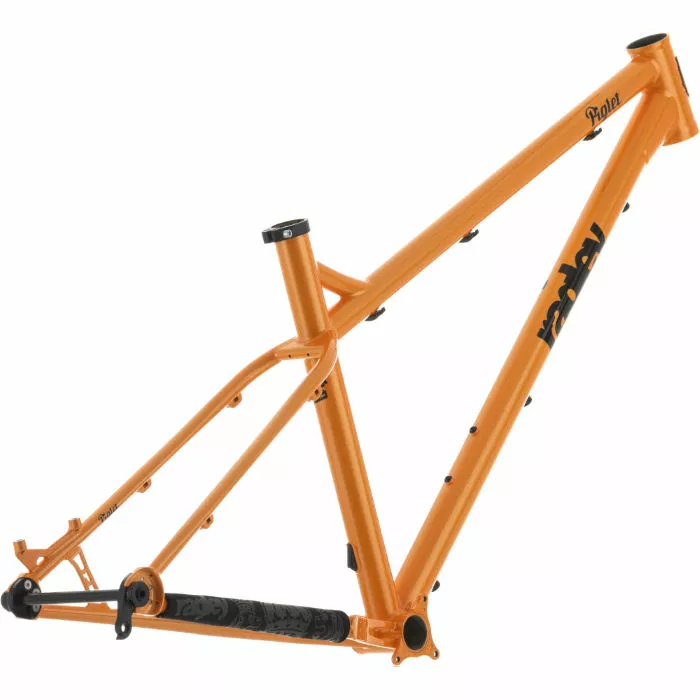

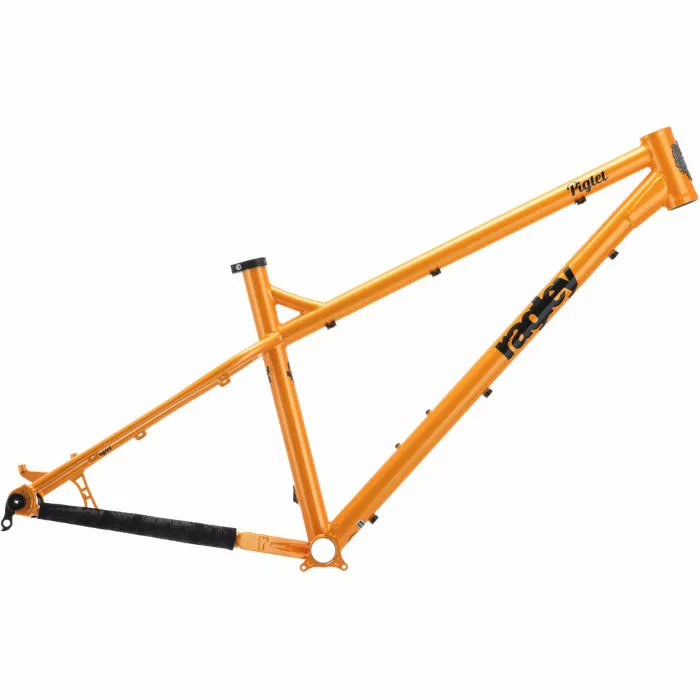

Ragley Piglet Hardtail Frame – Orange

The ideal hardtail for fun and efficiency trail riding, the Ragley Piglet Hardtail Frame is engineered from strong and lightweight Chromoly (CrMo) steel and is designed for use with 27.5″ wheels, 2.6″-wide tyres and 130 – 140mm fork travel.

The Piglet sounds like an underdog. It’s shorter travel than the Blue Pig and shares its geometry with the more trail-friendly Marley. But make no mistake, this Piglet is a special breed.

The triple-butted 4130 Chromoly tubes supply the compliance for all-day comfort but enough spring to make it a trail sniper’s dream on tight and twisty singletrack.

Engaging, lively and accurate, the Piglet is a joy on all-day epics, smashing laps around the local woods or carving up the trail centres. The frame features all the modern standards, including ISCG 05 chain guide tabs and boost 148×12 axle spacing.

This little piggy will make you go wee wee wee all the way home…

Features:

5 Year Warranty and lifetime crash replacement

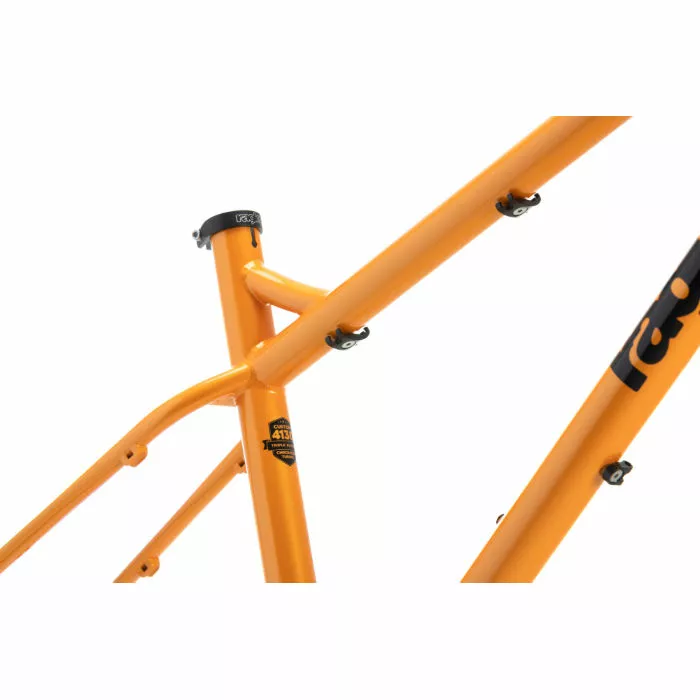

4130 Chromoly Steel
ISCG 05 Tabs
ISO 4210 Certified
Head Angle: 65.5˚Static
Effective Seat Angle: 73˚
Chainstay Length: 425mm
Seatpost: 31.6mm

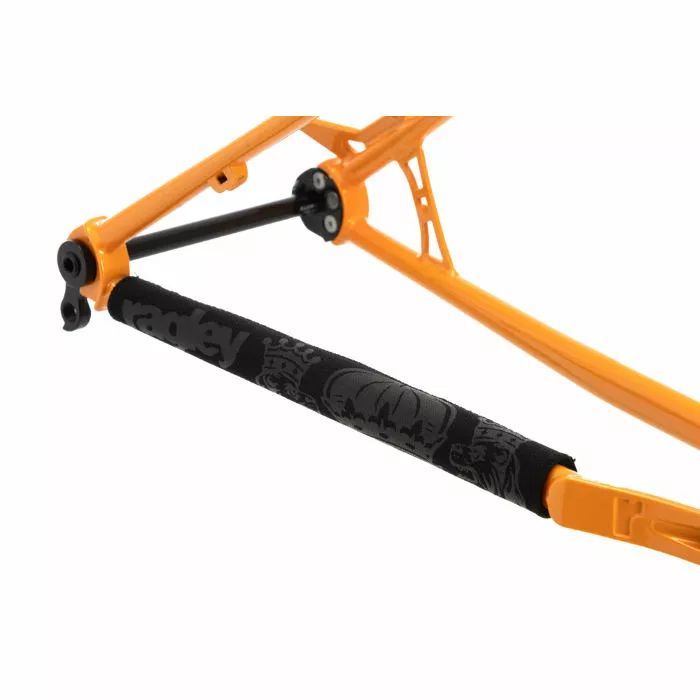

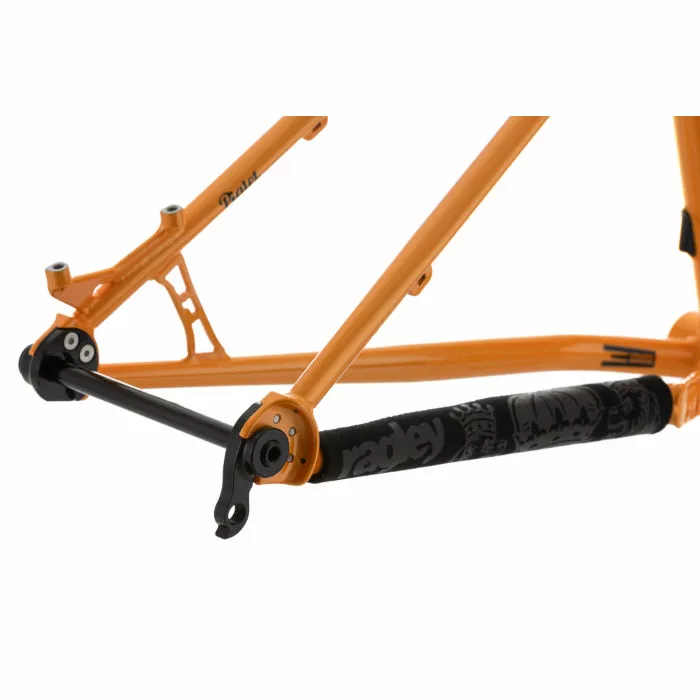

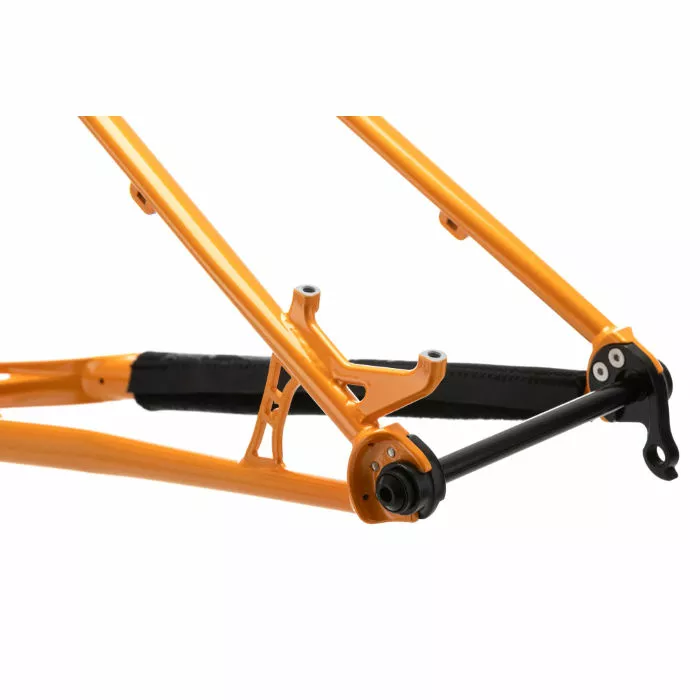

Rear Axle: Ragley 12mm x 148mm Thru-Axle
Seat Collar: 34.9mm

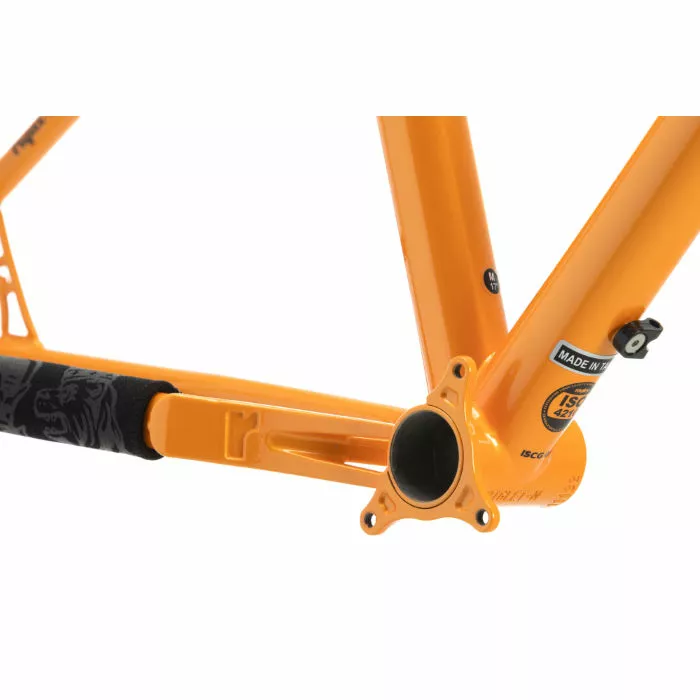

BB Shell: 73mm BSA

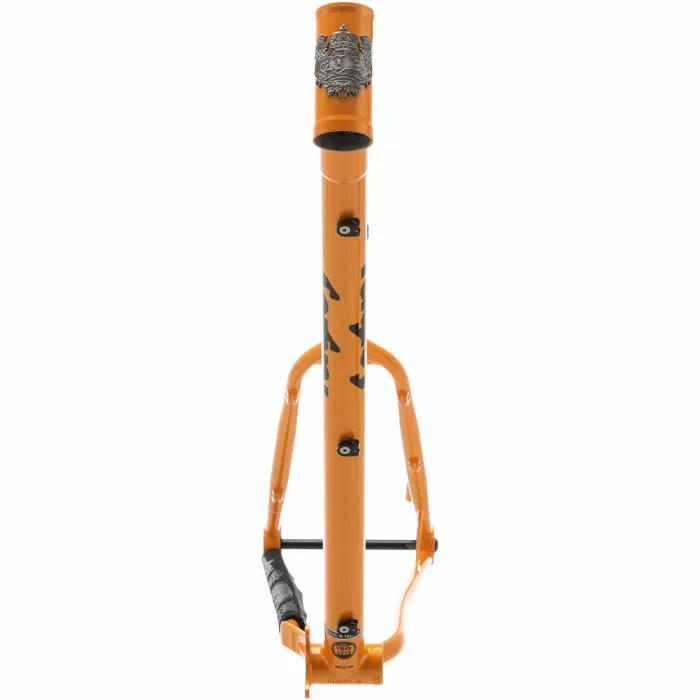

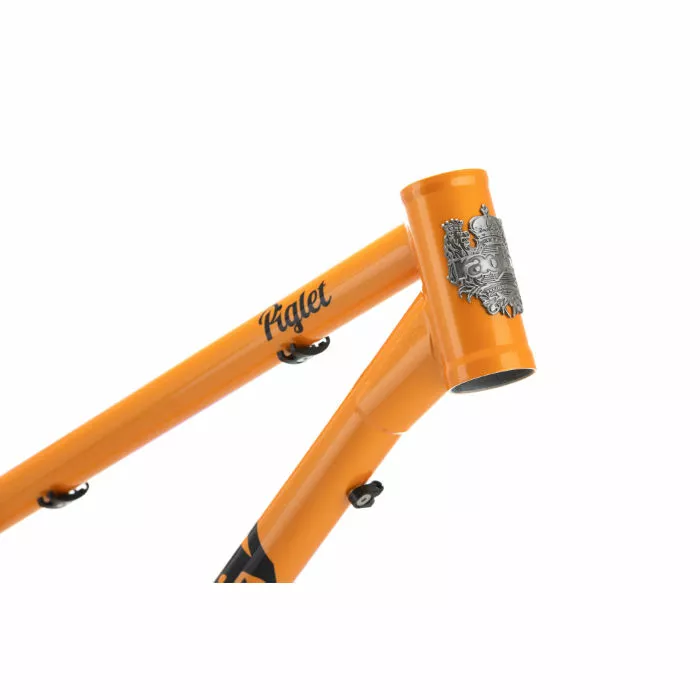

Headset: ZS44/28.6
EX44/40
Wheel Size: 27.5”
Max Tyre Size: 2.6”
BB Drop: -45mm
Recommended Fork Travel: 130mm – 140mm
Weight: Approximately 2.96kg

Topfunktioner:

• 5 Year Warranty and lifetime crash replacement
• Material: 4130 Chromoly Steel
• ISCG 05 Tabs
• ISO 4210 Certified
• Rear Axle: Ragley 12mm x 148mm Thru-Axle
• BB Shell: 73mm BSA
• Wheel Size: 27.5″
• Max Tyre Size: 2.6″
• Recommended Fork Travel: 130mm – 140mm
• Weight: Approximately 2.96kg
